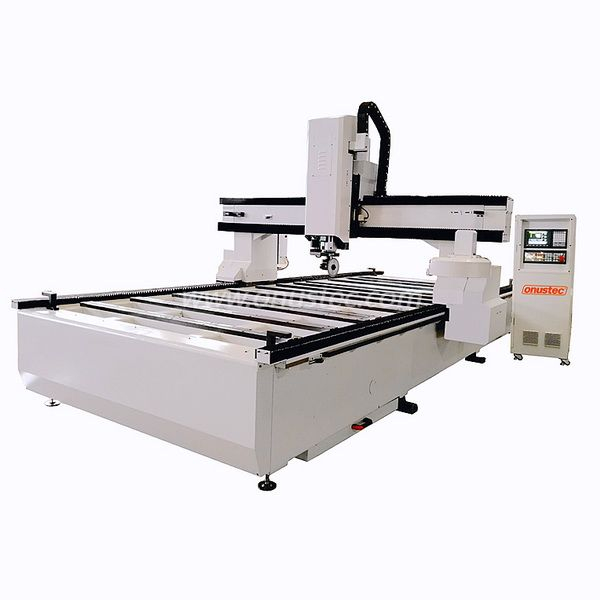

3-Axis CNC Router Machining Center for Aluminum

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:

Features

· 3-axis cnc router machining center

· Designed for economical and efficient machining of aluminium and aluminium sheets,aluminium composite panels.

· All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile profile or panel is stationary to protect the surfaces

· Alongside 8 positions umbrella tool magazine allows fast machining and short tool changing time,thus optimizing the machining cycles

· Operator cam software with graphic 3D display of workpieces(optional)

· Creative dual industrial operation system and windows operation system

· 18.5" panel PC, USB ports and network connection

· Automatic Central Oil Lubrication System

· Vacuum pump system ensures the smooth clamping of panels and even accurate machining(optional).

· 3-axis controller

· camQuix (option)

Options

· Automatic tool sensor and length measurement

· Barcode scanner

· Label printer

· Tool holders

· Collet chuck

· Collets

· Saw blades

· Tools



Model No.

OYT-C1526

Travel Stroke

X-Axis

2000mm

Y-Axis

1200mm

Z-Axis

300mm

Feeding

Axis

X

Y

Z

Feeding Speed

60m/min

30m/min

30m/min

Processing Speed

15000mm/min

15000mm/min

15000mm/min

Re-positioning Accuracy

±0.05mm

±0.05mm

±0.05mm

Spindle

Power

9.5KW

Max. Speed

24000rpm

Tool Shank

ISO 30

Tool Magazine

Magazine Type

Umbrella Type

Capacity

8

Tool Chang Time

3-5s

Power Supply

Voltage

415V/380V/220V As per requirements

Transformer Requirement

25 KVA

Air Source

0.6Mpa~0.9Mpa

Air Consumption

100L/min

Cooling

Processing

Mist Spray Cooling System

Spindle

Air-Cooling

Lubrication

Ball Screw

Automatic Central Oil Lubrication System

Linear Guide

Automatic Central Oil Lubrication System

Dust Collection

Standard

Manual Push-pull Drawer

Optional

Chip Conveyor System

Protection

Machine Protection

Electronic Light Curtain Sensor Protection

Machine Data

Dimension(LxWxH)

3500x2000x1800mm

Weight

4000kg

Operation Requirements

Total Power

16.0KW

Environment Temperature

5~40 C. Degree

Environment Humidity

30~70

Vibration Intensity

<0.5G

Protect from floating dust, Corrosive Air

Grounding Resistance

<10Ω
