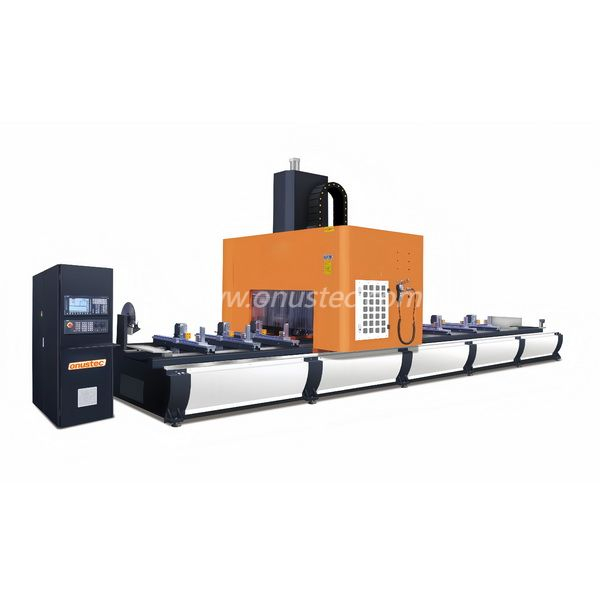

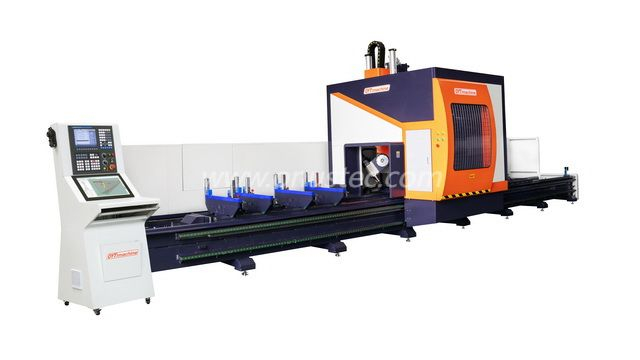

The 5-Axis Aluminium Facade Curtain Wall CNC Profile Machining Center is applicable for High Accuracy Complicated Processing of Aluminium Metal profiles with one-time clamping, it adopts Creative Design Concepts and Production Technics in accordance with German High Standards and continuous optimization.

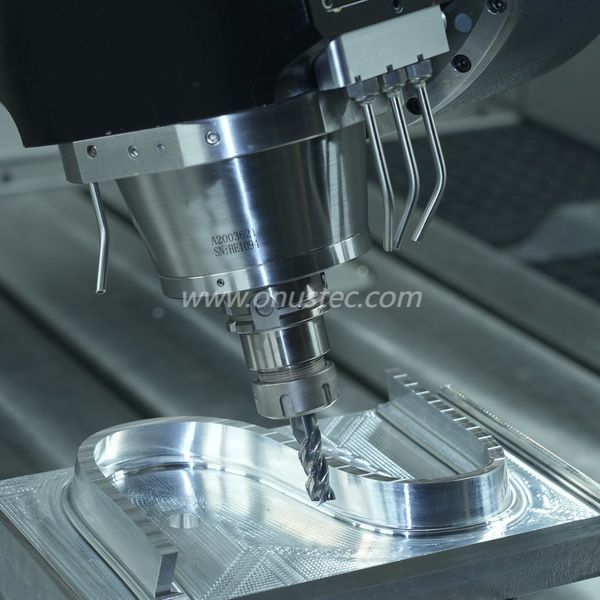

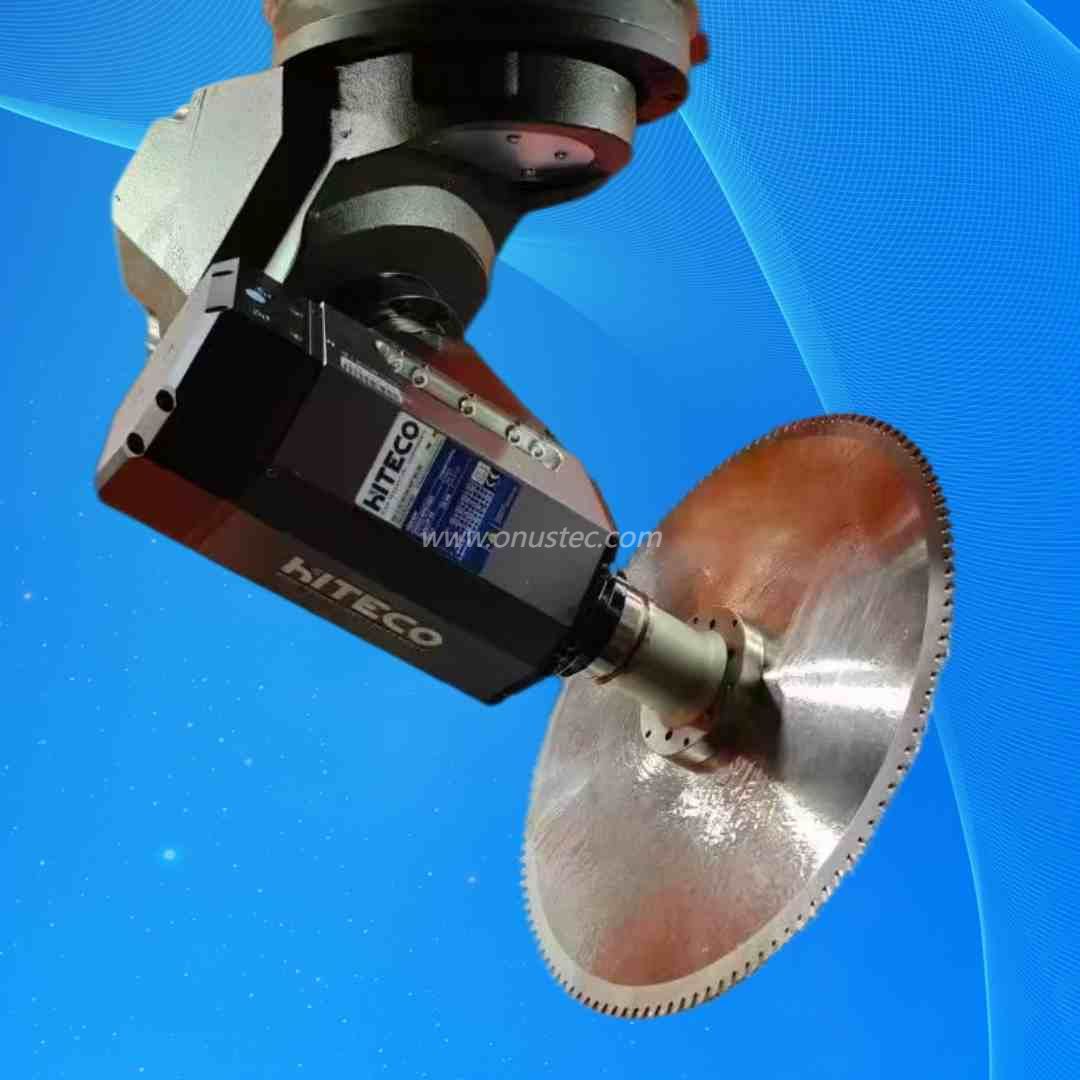

It equips 17KW powerful spindle with fast alongside 8 tools magazine and 1 big saw blade of 500mm for large and flexible processing,it can process at any angle and direction in 5 axis and it can also realize 6-side machining from below with an optional angle head, and it’s professional in complicated processing and high accuracy with one-time clamping on regular and irregular profiles.
It adopts Germany Siemens 5-Axis Professional Industrial system with easy operated Man-Machine Conversation Interface, and creatively additional Windows PC on the Control Station to edit program with DXF files, Step files(Germany 3D Software is Optional) transfer to the NC System.
It adopts Casting Machine Head and Casting Clamping Device, as well as Famous High Precision Spindle,Reduer,Ball Screw,Gear Rack and Pinion,Linear Guide, specially our powerful professional well trained assembly engineering technics,which ensures the big processing range for large and compound shaped&curve profiles and the machine high precision for high standard processing requirements.
| Quantity: | |
|---|---|
· 5-axis cnc machining center
· Designed for economical and efficient machining of aluminium and thin-walled steel profiles
· All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces
· 6-side machining. From below with an angle head (optional)
· Equipped with 8 tools+1 big saw blade alongside umbrella tool magazine allows fast machining and short tool changing time,thus optimizing the machining cycles
· Auto clamp avoidance system improves the efficiency and safety
· Operator cam software with graphic 3D display of workpieces(optional)
· High-precision grinding stable and durable gear rack and pinion,ball screw,linear guide ensures smooth and accurate machining.
· Creative dual industrial operation system and windows operation system for convenient and more option operation
· Electronic light curtain protection for operator’s safety
· Two separate working zones enable machining in shuttle operation (optional)
· 18.5" panel PC, USB ports and network connection
· Automatic Central Oil Lubrication System
· 5-axis controller
· camQuix (optional)
· Shuttle operation for working on two sides
· Angle routing head for machining from below
· Automatic tool sensor and length measurement
· Auto Chips conveyor system
· Barcode scanner
· Label printer
· Tool holders
· Collet chuck
· Saw head
· Tools
