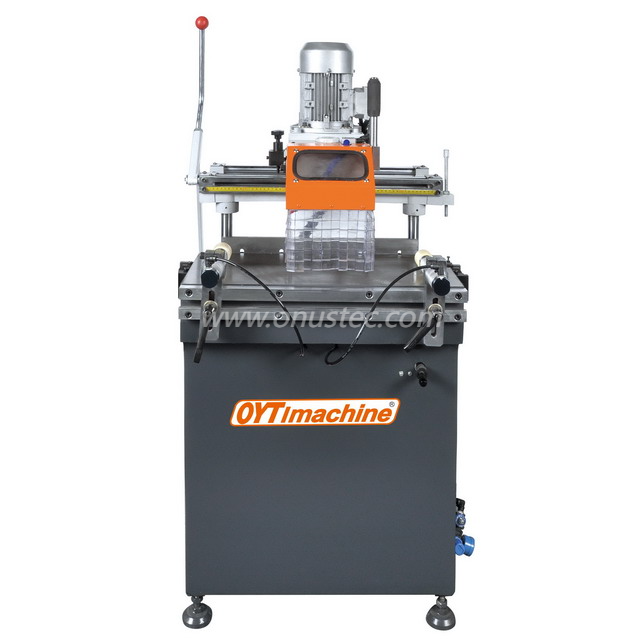

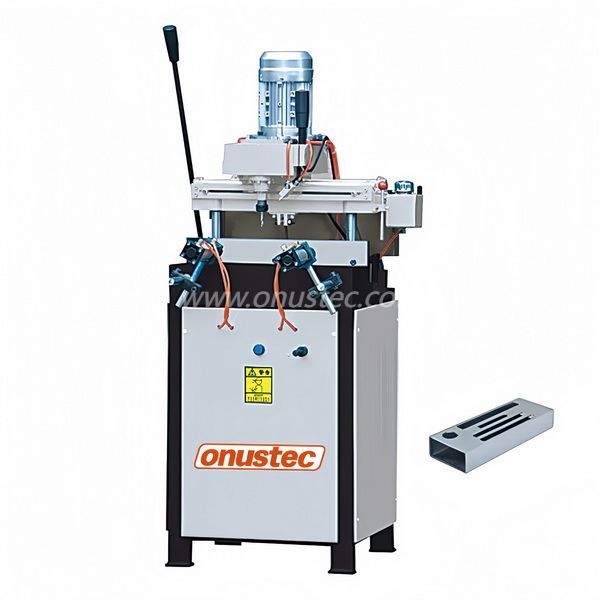

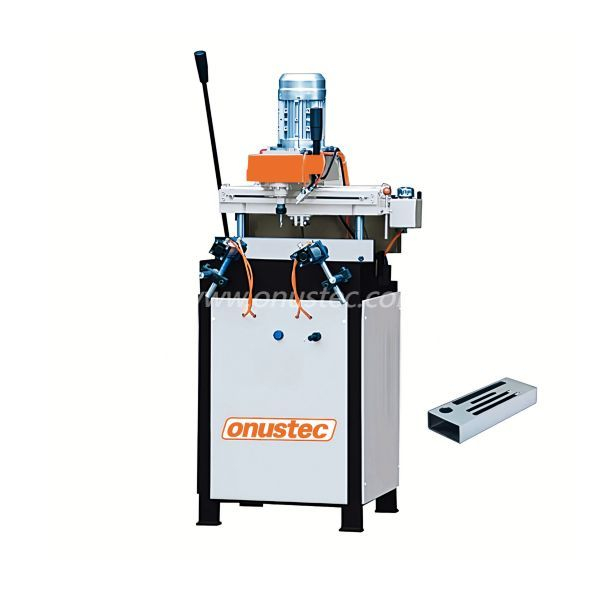

Aluminium Windows and Doors Single Spindle Copy Router

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This Aluminium Windows and Doors Single Spindle Copy Router is applicable for Milling Drilling Lock Holes or Water Slot etc. on Aluminium Profiles, it adopts Creative German Design Concepts and Production Technics in accordance with European High Standards and Continuous Optimization.

It adopts Creative German Design and Casting Machine Base, as well as Famous High Precision Components, specially the Powerful Professional Assembly Engineering Technics that Well Trained by German Engineers,which ensures the wide processing range for large and complicated profiles and High Accuracy for High End Processing Requirements.
Availability:
Quantity:

Features

· Single axis copy router machine

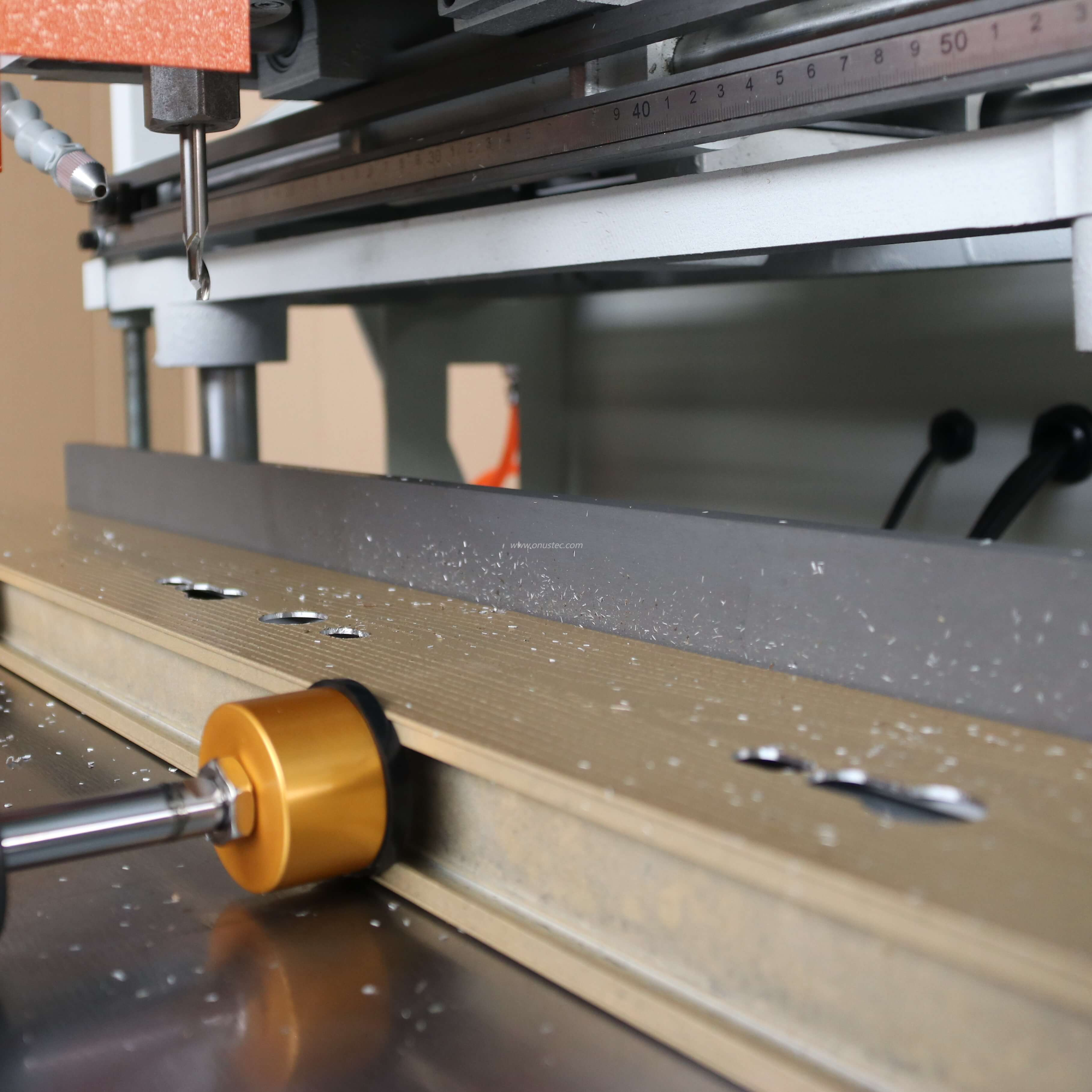

· Applicable for drilling and milling on aluminium profile by template

· New precision routing with easy one-lever and convenient switch handle operation

· Copy routing the patterns at a ratio of 1:1 from templates to the profiles

· Single stand supports for long profile routing is available

· Different custom templates can be made as per your drawings

· Copy routing using stops is also possible (only rectangular cutting patterns)

· Protection cover with transparent curtain for safe operation

· Horizontal pneumatic material clamping units

· Liquid mist diffuser coolant system

Options

· Collets

· Copy templates

· Stands and guide bars

· Workpiece supports and stops

· Material clamping units

· Milling tools

· High performance cutting fluid




Model No.

OYT-F101

Milling Stroke

110x280

Motor Power

2.2KWx1

Motor Speed

2860rpm

Machining Accuracy

±0.1mm/m

Cooling Type

Mist Diffuser

Lubrication

Central Auto

Voltage

3Phase,380V/415/220,50Hz or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Dimension (L × W × H)

800x500x1500mm

Weight of machine

250Kg
