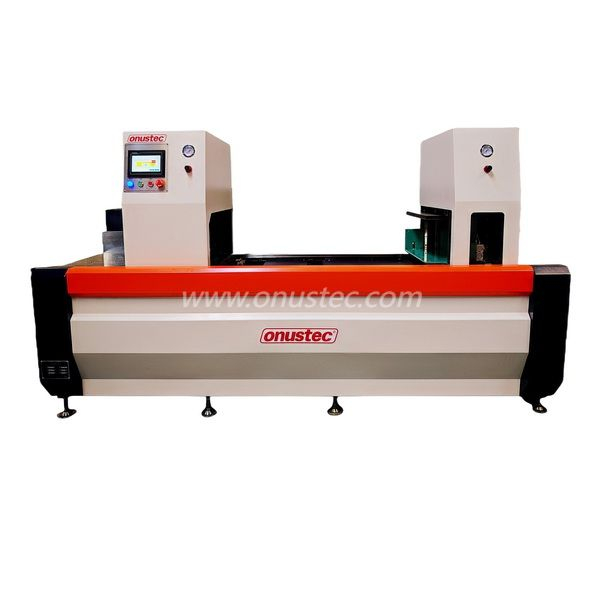

High Precision Heavy Duty CNC Automatic Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This High Precision Heavy Duty CNC Automatic Saw is applicable for 90 Degree Cutting of Large and Thick Aluminium Metal Profiles with 6000mm servo accurate ball screw servo driving system, it adopts Creative German Design Concepts and Production Technics in accordance with European High Standards and Continuous Optimization.

It adopts Famous Easy Operated Man-Machine Conversation Interface,Casting Machine Base, as well as Famous High Precision Components,specially the Powerful Professional Assembly Engineering Technics that Well Trained by German Engineers,which ensures the wide processing range for large and complicated profiles and High Accuracy for High End Processing Requirements.
Availability:
Quantity:

Features

· High precision heavy duty cnc automatic saw

· Suitable for big-volume repeat cutting of aluminium profiles for facade hook brackets,doors&windows manufacturing and other industrial applications

· CNC automatic control system by touching screen input ensures your convenient and variant operation of cutting length and qty.

· High precision servo feeding system ensures the repeat or different angle accurate cutting of aluminium profiles

· Servo driven length of 6000mm for accurate one-time feeding and cutting

· Liquid mist diffuser coolant system for aluminium machining

· Equipped with 600mm saw blades and safety hoods as standard

· Horizontal and vertical pneumatic material clamping units

· 90 degree are possible by saw blade tilting for repeat cutting(optional)

· 4.0KW motors for fast and thick profile bar cutting

· 600mm dia. Blade provide bigger cutting range

· Optimized protection shields as standard

· Hydro-pneumatic feeding as standard

Roller conveyor length variants

· 3,000 mm

· 4,500 mm

· 6,000 mm

· 7,500 mm

· Additional lengths on request

Options

· Label printer

· Saw blades

· Safety fence

· Roller conveyor

· Mobile workpiece support

· Material clamping units

· Special clamping unit for parts less than 5mm

· Stationary and/or travelling roller conveyor

· High performance cutting fluid for aluminium machining



Model No.

OYT-Z6006

Cutting Angle

90°

Cutting Width

250mm

Cutting Height

180mm

Once Servo Feeding Length

5-6000mm

Auto Feeding Mode

CNC Servo Feeding

Brake Servo Motor

750W

Cutting Length Setting Mode

Equal and Unequal Length

Cutting Length Precision

±0.1mm/m

Blade Dia.

Ф600

Motor Power

4.0KW

Motor Speed

2860rpm

Total Power

4.75KW

Roller Conveyor

3000mm

Cooling Type

Liquid Mist Diffuser

Lubrication System

Central Auto

Voltage

3Phase,380V/415/220,50Hz or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Dimension (L × W × H)

7600x1600x1600mm

Weight of machine

2500Kg
