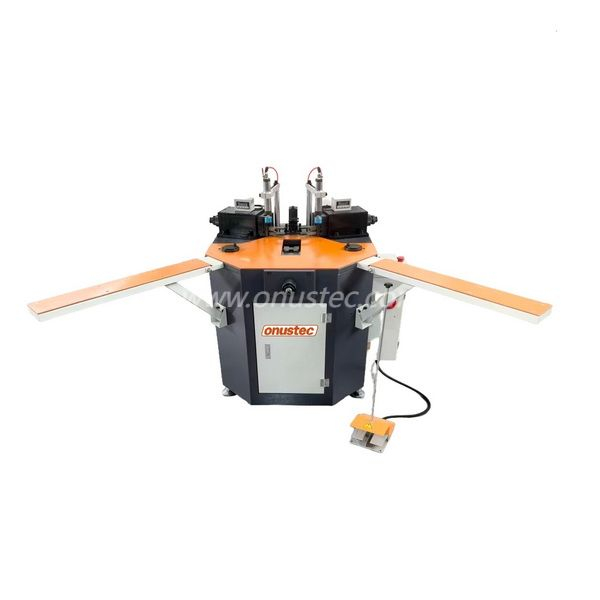

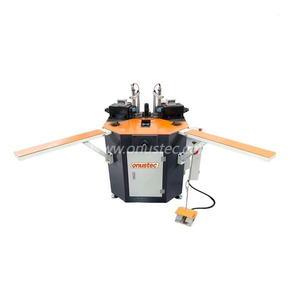

Aluminium Doors and Windows Corner Crimping Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This Aluminium Doors and Windows Corner Crimping Machine is applicable for Corner Crimping or Jointer of Aluminum Doors&Windows, it adopts Creative German Design Concepts and Production Technics in accordance with European High Standards and Continuous Optimization.

It adopts Creative German Design and Casting Machine Base, as well as Famous High Precision Components, specially the Powerful Professional Assembly Engineering Technics that Well Trained by German Engineers,which ensures the wide processing range for large and complicated profiles and High Accuracy for High End Processing Requirements.
Availability:
Quantity:

Features

· Corner crimping machine

· For crimping large profiles with the highest quality requirements

· The digital device makes the complicated crimping depth adjustment much easier and crimping depth record of each profile available for guidance

· The crimper blades are easy to adjust and change by convenient mechanical system

· Hydraulic system provides big crimping fork and availability of quieter operation

· With retractable, hydro-pneumatically controlled counter bearing

· The crimping depth can be set separately for each tool carriage

· An adjustable crimping blade is also available

· Support arms and crimping blades included as standard

· 2-hand operation

Options

· Special crimping blade



Model No.

OYT-A120

Crimping Height

120mm

Crimping Width

60mm

Crimping Blade Size

4/6/8/10mm

Motor Power

2.2KWx1

Motor Speed

1440rpm

Oil Pressure

16Mpa

Machining Accuracy

±0.1mm/m

Voltage

3Phase,380V/415/220,50Hz or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Air Consumption

15L/min

Dimension (L × W × H)

1200x1100x1100mm

Machine Weight

700kg
