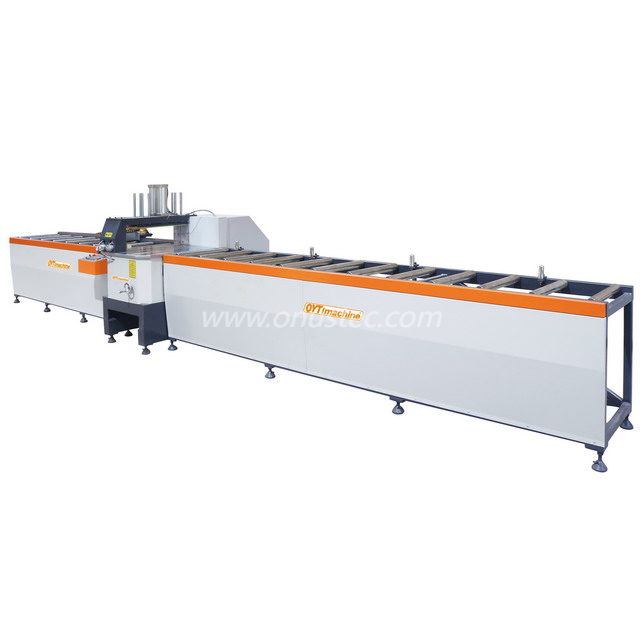

High Precision Heavy Duty Single Head Mitre Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:

Features

· High Precision Heavy Duty Single Head Mitre Saw

· High efficient cuts possible for all variant cutting

· Ideal machine for high-volume series production when cutting at 90° and 45°

· 3m length stop conveyor and 3m roller conveyor for convenient long profile cutting

· Liquid mist diffuser coolant system for aluminium machining

· Equipped with saw blades and safety hoods as standard

· Equipped with digital display system for convenient readout

· Equipped high precision linear guide as standard

· 1 pc mobile workpiece support and roller conveyor as standard

· Horizontal and vertical pneumatic material clamping units

· 4.0KW motors for fast and thick profile bar cutting

· 600mm dia. Blades provide bigger cutting range

· Optimized protection shields as standard

· Hydro-pneumatic feeding as standard

Cutting length variants

· 3,000 mm

· 4,500 mm

· 6,000 mm

· 7,500 mm

· Additional lengths on request

Options

· Label printer

· Saw blades

· Safety fence

· Mobile workpiece support

· Material clamping units

· Stationary and/or travelling roller conveyor

· High performance cutting fluid for aluminium machining



Model No.

OYT-G601

Cutting Length

0-3000mm

Cutting Width

250mm

Cutting Height

200mm

Cutting Angle

90°

Machining   Accuracy

±0.1mm/m

Blade Diameter

600mm

Cutting Motor

4.0KW

Motor Speed

2860rpm

Servo Motor

/

Total Power

4.0KW

Length Stop   Conveyor

3000mm

Roller Conveyor

3000mm

Cooling Type

Liquid Diffuser

Lubrication   System

Central Auto

Voltage

3Phase,380V/415/220,50Hz   or Custom-made

Working Air   Pressure

0.6Mpa-0.8Mpa

Machine   Dimension

7500x1600x1600mm

Machine Weight

2000kg
