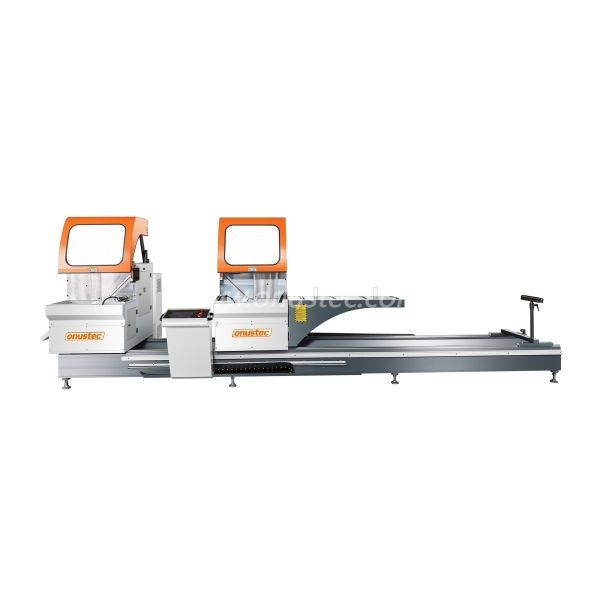

Large 45 Degree High Precision CNC Double Mitre Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This Large 45 Degree High Precision CNC Double Mitre Saw is applicable for 45 Degree double heads Cutting of Aluminium Metal Profiles with 600mm blades, in order to ensure the angle and straightness of profile cutting, it adopts high precision linear guide for blades movement, and it adopts Creative German Design Concepts and Production Technics in accordance with European High Standards and continuous optimization.

It adopts Famous Easy Operated Man-Machine Conversation Interface,Casting Machine Base, as well as Famous High Precision Components,specially the Powerful Professional Assembly Engineering Technics that Well Trained by German Engineers,which ensures the wide processing range for large and complicated profiles and High Precision for High End Processing Requirements.
Availability:
Quantity:

Features

· 45 degree high precision CNC double mitre saw

· High efficient cuts possible for all variant length cutting

· Ideal machine for high-volume series production when cutting at 45°

· High precision fixed linear guide 45°cutting ensures the cutting accuracy and straightness

· Liquid mist diffuser coolant system for aluminium machining

· Equipped with saw blades and safety hoods as standard

· Equipped with CNC system and touching screen as standard

· Equipped high precision linear guide and servo driving system as standard

· 1 pc mobile workpiece support and roller conveyor as standard

· Horizontal and vertical pneumatic material clamping units

· 2x3.0KW motors for fast and thick profile bar cutting

· 500mm dia. Blades provide bigger cutting range

· Optimized protection shields as standard

Cutting length variants

· 3,000 mm

· 4,500 mm

· 6,000 mm

· 7,500 mm

· Additional lengths on request

Options

· Saw blades

· Safety fence

· Label printer

· Material clamping units

· Mobile workpiece support

· Stationary and/or travelling roller conveyor

· Additional software of optimized cutting function

· High performance cutting fluid for aluminium machining



Model No.

OYT-G461S

Cutting Length

420-4500mm

Cutting Width

230mm

Cutting Height

145mm

Cutting Angle

45

Machining Accuracy

±0.1mm/m

Blade Diameter

600mm×2

Cutting Motor

3.0KW×2

Motor Speed

2860rpm

Servo Motor

0.75KWx1

Total Power

6.75KW

Cooling Type

Liquid Diffuser

Lubrication System

Central Auto

Voltage

3Phase,380V/415/220,50Hz or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Machine Dimension

5800x1600x1600mm

Machine Weight

2000kg
