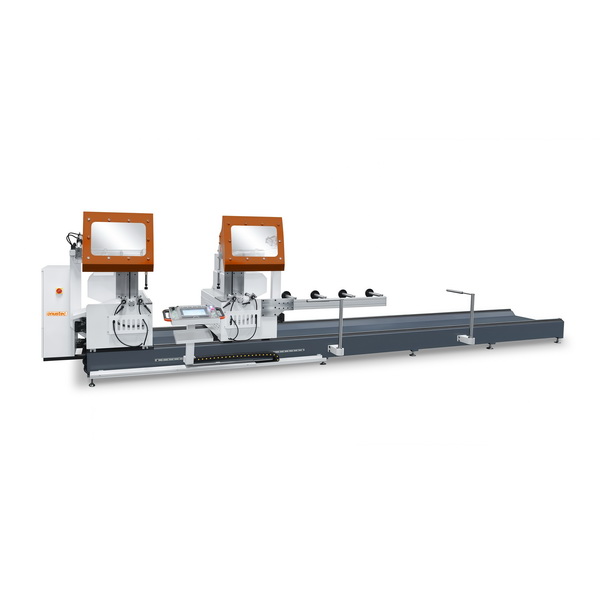

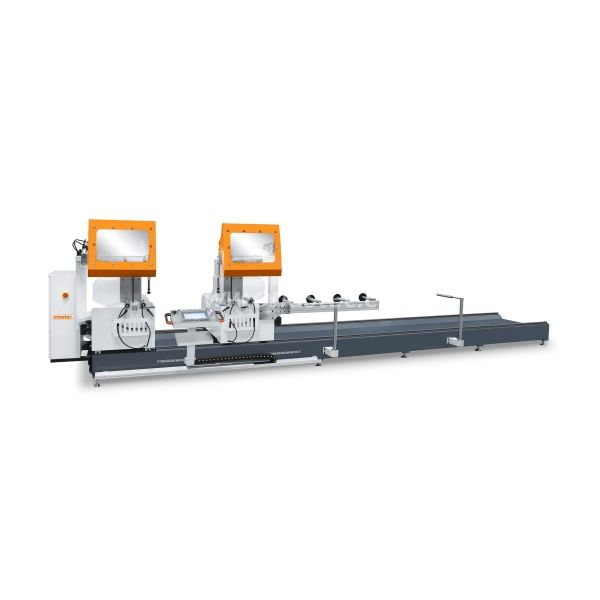

Large Heavy Duty CNC Double Mitre Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This Large Heavy Duty CNC Double Mitre Saw is applicable for Multi Angle Cutting of Aluminium Metal Profile, Min. Cutting Angle reaches 22.5 degree,it adopts Creative German Design Concepts and Production Technics in accordance with European High Standards and continuous optimization.

It adopts easy operated Man-Machine Conversation Interface,Casting Machine Base, as well as Famous High Precision components,specially the Powerful Professional Assembly Engineering Technics that Well Trained by German Engineers,which ensures the wide processing range for large and complicated profiles and High Precision for High End Processing Requirements.
Availability:
Quantity:

Features

· High efficient cuts possible for all variant cutting

· Ideal machine for high-volume series production for different angle cutting

· 45° and 90 ° ensures accurate cutting

· Equipped high precision linear guide and servo driving system as standard

· High precision linear guide blades feeding ensures machining accuracy

· Liquid mist diffuser coolant system for aluminium machining

· Equipped with saw blades and safety hoods as standard

· Equipped with CNC system and touching screen as standard

· Horizontal and vertical pneumatic material clamping units

· 2x4.0KW motors for fast and thick profile bar cutting

· 600mm dia. Blades provide bigger cutting range

· Optimized protection shields as standard

· Hydro-pneumatic feeding as standard

Cutting length variants

· 3,000 mm

· 4,500 mm

· 6,000 mm

· 7,500 mm

· Additional lengths on request

Options

· Saw blades

· Safety fence

· Label printer

· Material clamping units

· Mobile workpiece support

· Stationary and/or travelling roller conveyor

· Additional software of optimized cutting function

· High performance cutting fluid for aluminium machining


Model No.

OYT-Z606

Cutting Length

460-6000mm

Cutting Width

180mm

Cutting Height

250mm

Cutting Angle

45/90°

Repositioning Accuracy

±0.05mm

Blade Diameter

600mm×2

Cutting Motor

4.0KW×2

Motor Speed

3000rpm

Brake Servo Motors

0.75KWx1

Total Power

6.75KW

Cooling Type

Liquid Diffuser

Lubrication System

Central Auto

Voltage

3Phase,380V/415/220,50Hz or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Machine Dimension

7500x1500x1500mm

Machine Weight

2500kg
