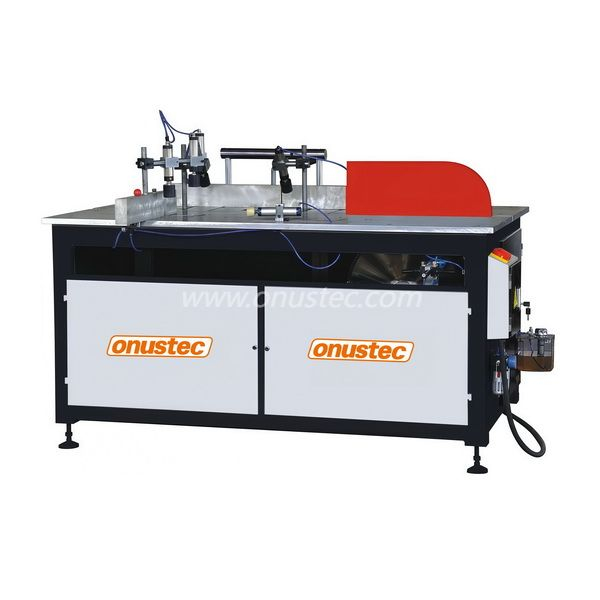

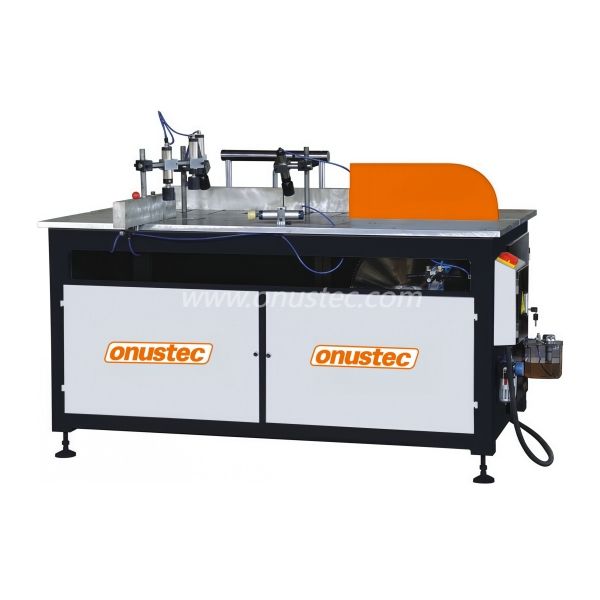

Digital Display Aluminum Large Multi Angle Table Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This Digital Display Aluminum Large Multi Angle Table Saw is applicable for Different Angle Cutting of Large Aluminium Metal Profiles, it adopts Creative German Design Concepts and Production Technics in accordance with European High Standards and Continuous Optimization.

It adopts Advanced German Design and Casting Machine Base, as well as Famous High Precision Components,specially the Powerful Professional Assembly Engineering Technics that Well Trained by German Engineers,which ensures the wide processing range for large and complicated profiles and High Accuracy for High End Processing Requirements.
Availability:
Quantity:

Features

  • High efficiency cuts possible for all variant cutting

  • Ideal machine for high-volume series production when cutting at 90°(Backup is available for ±45°)

  • 3m length stop conveyor and 3m roller conveyor for convenient long profile cutting

  • Liquid mist diffuser coolant system for aluminium machining

  • Equipped with saw blades and safety hoods as standard

  • Equipped with digital display system for convenient readout

  • Equipped high precision linear guide for high accuracy as standard

  • 1 pc mobile workpiece support and roller conveyor as standard

  • Horizontal and vertical pneumatic material clamping units

  • 3.0KW motors for fast and thick profile bar cutting

  • 600mm diameter blade provide bigger cutting range

  • 700mm big cutting width and 200mm cutting height is available

  • Hydro-pneumatic feeding as standard

Cutting length variants

  • 3,000 mm

  • 4,500 mm

  • 6,000 mm

  • 7,500 mm

  • Additional lengths on request

Options

  • Label printer

  • Saw blades

  • Safety fence

  • Mobile workpiece support

  • Material clamping units

  • Stationary and/or travelling roller conveyor

  • High performance cutting fluid for aluminium      machining


Model No.

OYT-D600L

Cutting angle

90°(Backup ±45°)

Cutting Width

700mm

Cutting Height

200mm

Blade Dia.

Ф600mm

Motor Power

4.0KW

Motor Speed

3000rpm

Cutting Length   Precision

±0.1mm/m

Cooling Type

Liquid Diffuser

Lubrication   System

Central Auto

Voltage

3Phase,380V/415/220,50Hz   or Custom-made

Working Air   Pressure

0.6Mpa-0.8Mpa

Dimension (L ×   W × H)

2000x1000x950mm

Weight of   machine

800Kg
