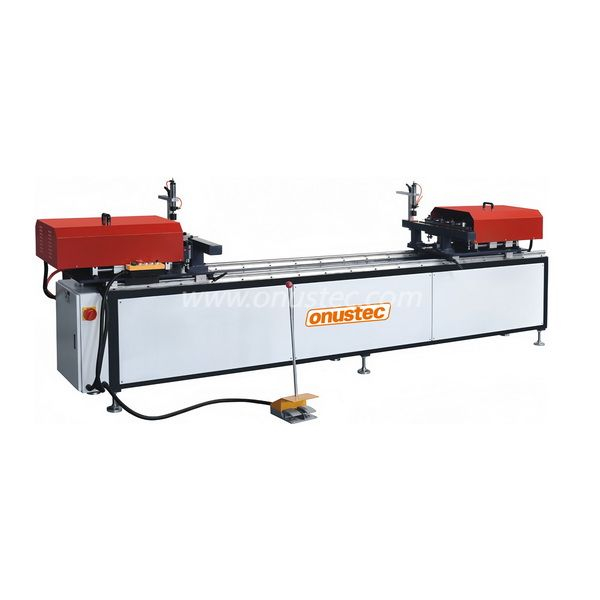

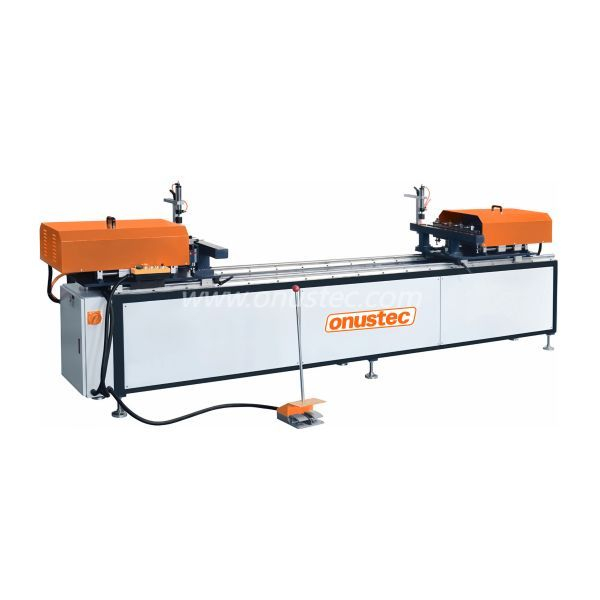

Fast Double Heads Aluminium Window Drilling Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:

Features


  • Drilling machine

  • For multiple holes drilling with the high efficiency requirements on two sides

  • 4+4 drilling heads design is convenient for hinges drilling

  • Adjustable worktable height and drilling distance is available

  • High precision guide rail provides convenient and accurate movement

  • With buffers, clamps and locking device as standard

  • Drilling depth adjustment is available


Options

  • Drilling bits


Model No.

OYT-Q210

Adjustable Distance

400-1800mm

Motor Power

2x1.5KW

Motor Speed

1440rpm

Machining Accuracy

±0.1mm/m

Voltage

3Phase,380V/415/220,50Hz   or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Air Consumption

10L/min

Total Power

3.0KW

Dimension (L × W × H)

3000x800x1200mm

Machine Weight

1000kg
