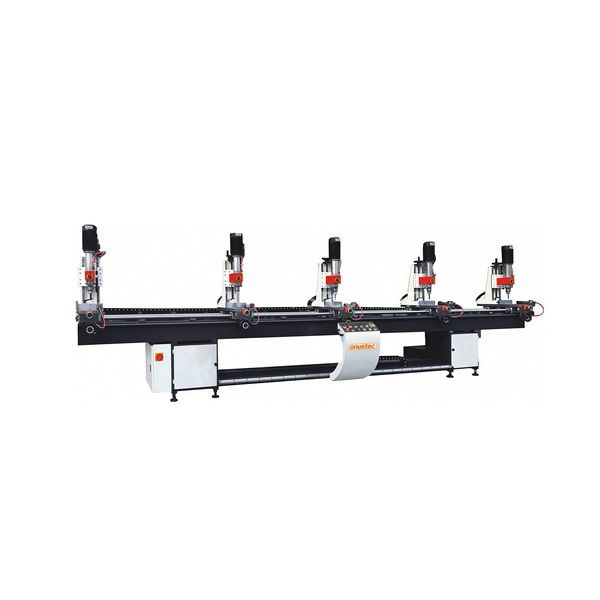

High Efficient Multi Heads Aluminum Drilling Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:

Features

  • Multi heads drilling machine

  • For multiple holes drilling with the high efficiency requirements

  • The multiple adjustment handles allow convenient drilling adjustment in X/Y/Z axis to meet production requirement

  • The position records make it easier for operation guidance

  • High precision guide rail provides convenient and accurate movement

  • With buffers, clamps and locking device

  • Four heads work separately or simultaneously is allowed

  • Drilling depth adjustment is available

  • Multiple holes by one head with multiple spindle boring head is available


Options

  • Multiple spindle boring head

  • Drilling bits


Model No.

OYT-Q410

Worktable Dimension

200x120mm

Standard Drilling Head

4pcs or  custom-made

Motor Power

4x1.5KW

Motor Speed

1440rpm

Machining Accuracy

±0.1mm/m

Voltage

3Phase,380V/415/220,50Hz  or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Air Consumption

15L/min

Total Power

6.0KW

Dimension (L ×  W × H)

6000*800*1200mm

Machine Weight

1600kg
