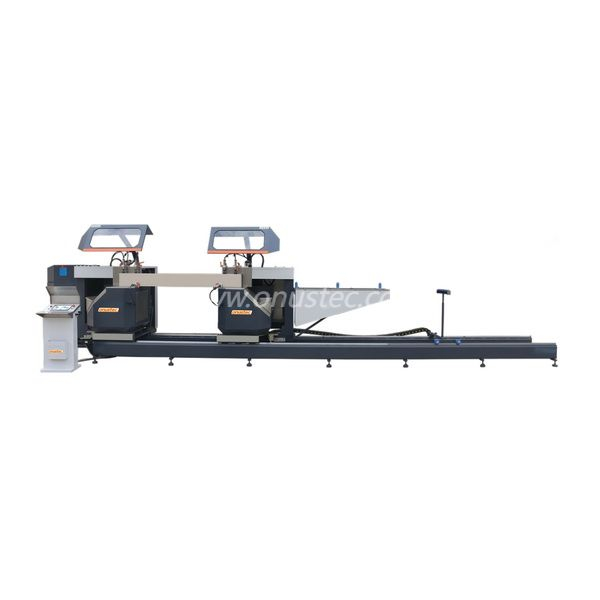

Large 5-Axis Aluminum Facade Curtain Wall CNC Double Mitre Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This Large 5-Axis Aluminum Facade Curtain Wall CNC Double Mitre Saw is applicable for compound angle cutting of aluminium metal profiles, it adopts creative german design concepts and production technics, it's newly designed machine based on continuous optimization in high standard.

It adopts easy operated man-machine conversation interface,casting machine base, as well as famous high precision components,specially the professional assembly engineering technics that well trained by german engineers,which ensures the wide processing range for large and complicated profiles and high precision for hgh end processing requirements.
Availability:
Quantity:

Features

· 5-axis cnc double mitre saw

· The reliable German principle "Cutting from below”

· High efficient cuts possible for all variant cutting

· Ideal machine for high-volume series production for compound angle cutting

· A large saw blade diameter and optimal use of the saw blade offer an ideal cutting capacity for all cutting variations

· Automatic tilting angle from 90°to 45°meetings your variant cutting angle requirements

· Large pivoting angle from 22.5°to 135°meets your variant complicated cutting requirements

· Equipped high precision linear guide and servo driving system as standard

· Liquid mist diffuser coolant system for aluminium machining

· Equipped with saw blades and safety hoods as standard

· Equipped with CNC system and touching screen as standard

· Equipped 5 accurate servo motors and drivers to ensure your efficient production

· Horizontal and vertical pneumatic material clamping units

· 2x4.0KW motors for fast and thick profile bar cutting

· 600mm dia. blades provide bigger cutting range

· Optimized protection shields as standard

· Hydro-pneumatic feeding as standard

Cutting length variants

· 4,500 mm

· 6,000 mm

· 7,500 mm

· Additional lengths on request

Options

· Saw blades

· Safety fence

· Label printer

· Roller conveyor

· 650mm blades

· Material clamping units

· Mobile workpiece support

· Super short cutting function

· Stationary and/or travelling roller conveyor

· Additional software of optimized cutting function

· High performance cutting fluid for aluminium machining


Model No.

OYT-G6065C

Cutting Length

460-6000mm

Cutting Width

270mm

Cutting Height

200mm

Table Rotation   Angle

22.5-135°   (Servo Driven)

Blade Swing   Angle

45-90° (Servo   Driven)

Repositioning Precision

±0.1mm

Blade Diameter

650mm×2

Cutting Motor

4.0KW×2

Pivoting Servo   Motor

750Wx2

Blades Tilting   Servo Motor

400Wx2

Length Servo   Motor

750Wx1

5 Brake Servo   Motors

750W×3/400W×2

Total Power

11.0KW

Voltage

3Phase,380V/415/220,50Hz   or Custom-made

Working Air Pressure

0.6Mpa-0.8Mpa

Machine   Dimension

7400x1700x1700mm

Machine Weight

3600kg
