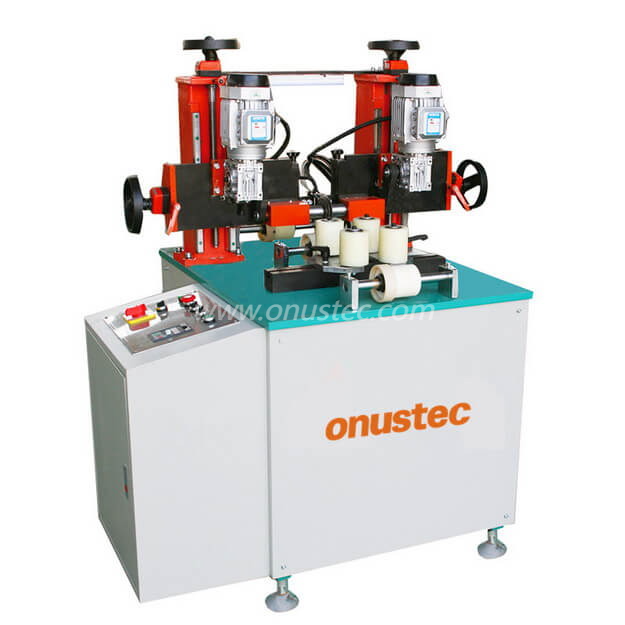

Thermal Break Profile Strip Knurling and Inserting Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:

Features

  • Thermal Break Profile Knurling Machine

  • For thermal break aluminum profile or heat insulating profile production

  • Specialized in knurling on the notch of thermal break aluminum profile to improve horizontal shearing force.

  • Max. profile section of 200x230mm is available

  • Stepless speed regulation from 0-70m/min and 90mm knurling blades are standard


Options

  • 3/6m roller brackets

  • Knurling blade


Model No.

OT-KI101

Max. Profile   Section

200x250mm

Motor Power

2x0.75KW

Motor Speed

2800rpm

Knurling Blades   Dia.

90mm

Speed

0-70m/min

Voltage

3Phase,380V/415/220,50Hz   or Custom-made

Total Power

1.50KW

Dimension (L ×   W × H)

2070*1050*1820mm

Machine Weight

850kg
