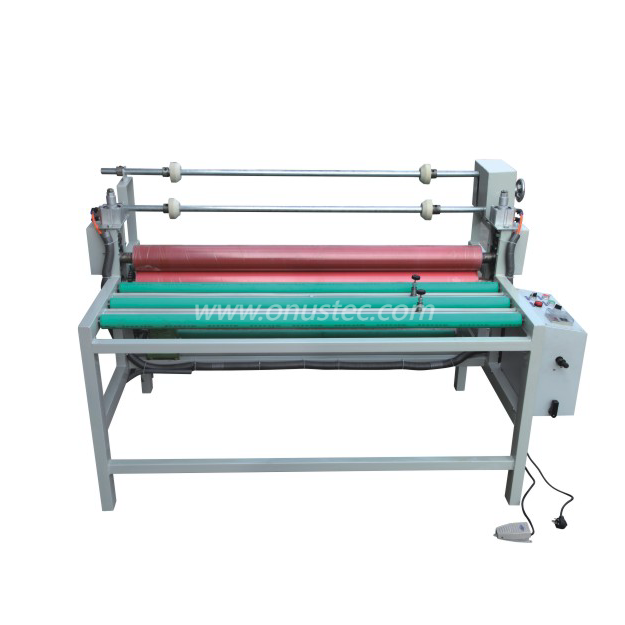

Panel Film Sticking Wrapping Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:


Features

  • For aluminum panels film sticking or wrapping

  • Max. wrapping width is 1350mm and custom size is      available

  • Temperature controller is available for 90-degree      max.

  • High efficiency with adjustable speed of max. 20m/min

  • 9 rubber rollers as standard with 1kw electric      heating tube





Options

  • 3/6m roller brackets

  • Rubber rollers

Model No.

OT-PW1350

Max. Wrapping   Width

1350mm

Main Rubber   Roller

2Pcs Ф100 x1350mm (140 Degree Resistance)

With 1KW electric Heating Tube Inside

Auxiliary   Rubber Roller

7 Pcs Ф54 x1350mm

Speed

0-20m/min

Temperature   Control

Normal-90   Degree

Motor Power

1.37KW

Motor Speed

2800rpm

Voltage

Single Phase,220V/50Hz   or Custom-made

Total Power

1.37KW

Dimension (L ×   W × H)

1430x1750x1150mm

Machine Weight

500kg
